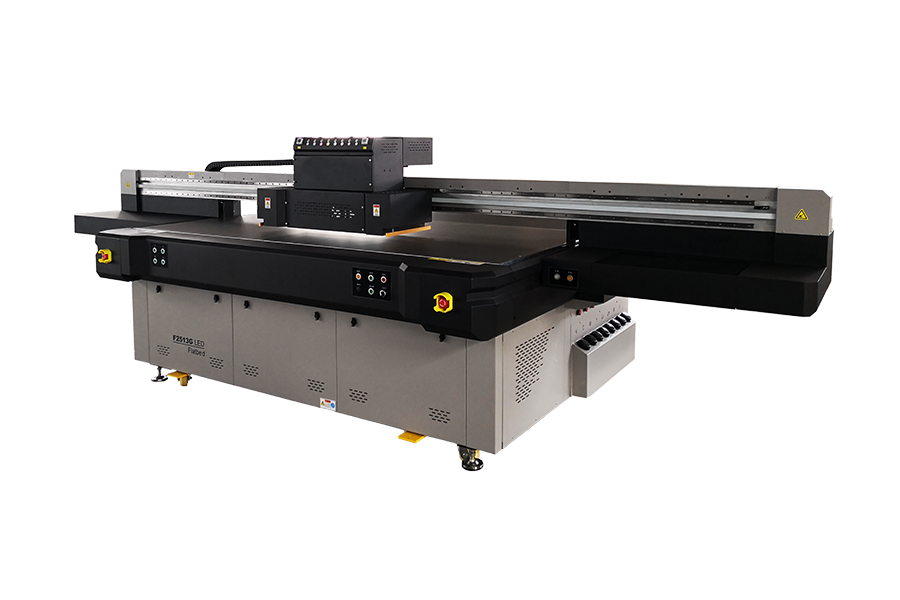

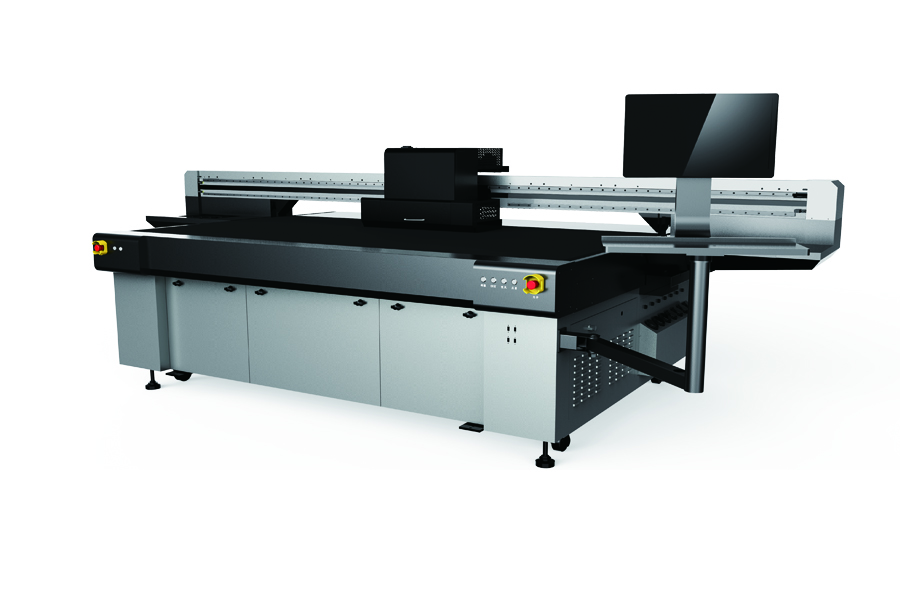

2513 UV (Stop)

Mode:

Printhead Gen5/Epson I3200-U1

Ink Type UV ink

Colors CMYK Lc Lm+W+V

Number of Head 4-8 heads

Printing Materials PVC Board, Acrylic, Wooden, Steel, etc.

RIP software Photoprint/Printfactory

Operating system Win7/Win8/Win10

We're here to help:Easy ways to get the answers you need.

  • Describe
  • Application
  • Parameter
  • Inquiry

1. automatic ink –supply system
User-friendly automatic ink-supply system, ink shortage of the secondary ink tank could be detected automatically, ink will be supplied immediately from main tank. When main tank asks for ink refill , Ink alarm system of the main tank will go off automatically , lights up the indicator lamp at the same time .

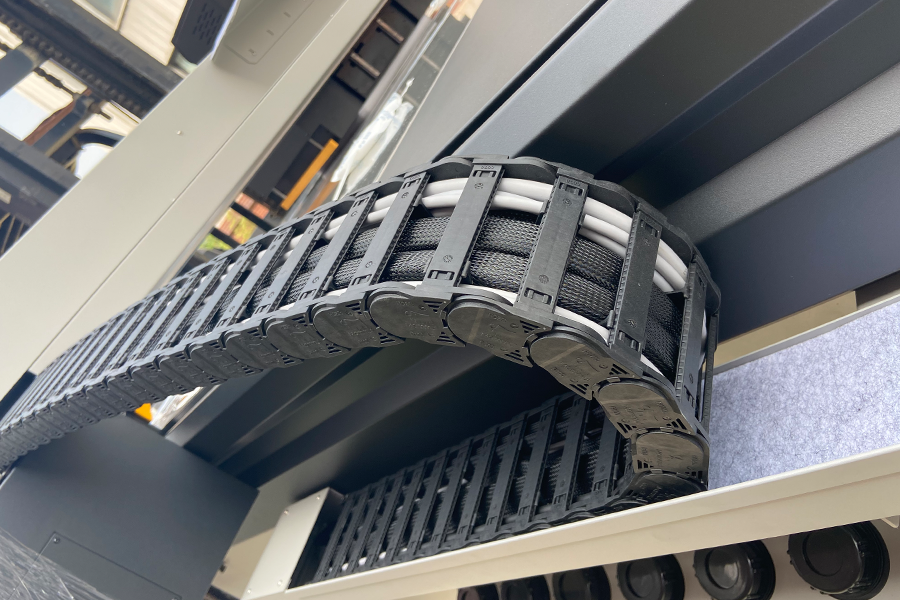

2. Imported mute towline
The towline is quite wearable ,stretchable and fireproof . works well under very high tension . No problem after as many as 80 million times of high-speed back and forth movements. It could protect and tow all the cables and water pipelines inside effectively .
3. High precision pure aluminum suction platform
The Pure aluminum platform is high precision and anti-inflation .After the Anode and cathode oxidation surface treatment, it gets the property of scratch –resistant and anti-statics. Suction platform could suck air through different ways, make sure the suction force is strong and even.
4. Imported environment -friendly ink
Imported UV ink is quite environment friendly and bright colorful .soft ink for soft media is especially stretchable, no cracks when stretched into even 120% larger. The ink possesses very good fluency .clogging free, high temperature resistant , and also could stick to the media surface firmly .
5. Imported PLC system
Imported PLC system and ink circulation system help to protect the printhead and mainboard , keep the stable and smooth supply of ink .

 UV printer also called Universal printer, it can print widely materias:

1. PVC, vinyl, mesh and some little size roll to roll material.

2. Acrylic

3. Steel

4. Glass

5. Wood


Print Model 2513 Rip software Support ultra print and maintop printing software
Printhead Epson I3200-U1 / Gen 5 Printing media acrylic,Aluminums board ,
ceramic tiles, glass,
wooden board, PC TPU, leather, etc.
Resolution 1440dpi*720dpi*360dpi File formats TIFF,BMP,PDF,EPS,JPEG etc.
Max avaiable Width and Length of media 2500mm*1300mm Printing speed 4pass 26.5㎡/h 6pass 19.3㎡/h
Ink system solvent ink: CMYK
support secondary ink tank supply
  8pass 14㎡/h 12pass 8.7㎡/h
Printing interface USB2.0 Measurements 4026*2307*1300mm
Workable system Microsoft win98/Me/2000/XP/Win7 Packing size
and weight
4184*2530*1655mm 630kg
Working environment temperature 20℃---30℃
humidity:15%---40%
Voltage power AC220V 50HZ 2.5KW
Lifting function intelligent ink cartridge lifting, electron automatic/manual operation intelligent induction to inspect and adjust height Printing height 100mm(height is customizable)
