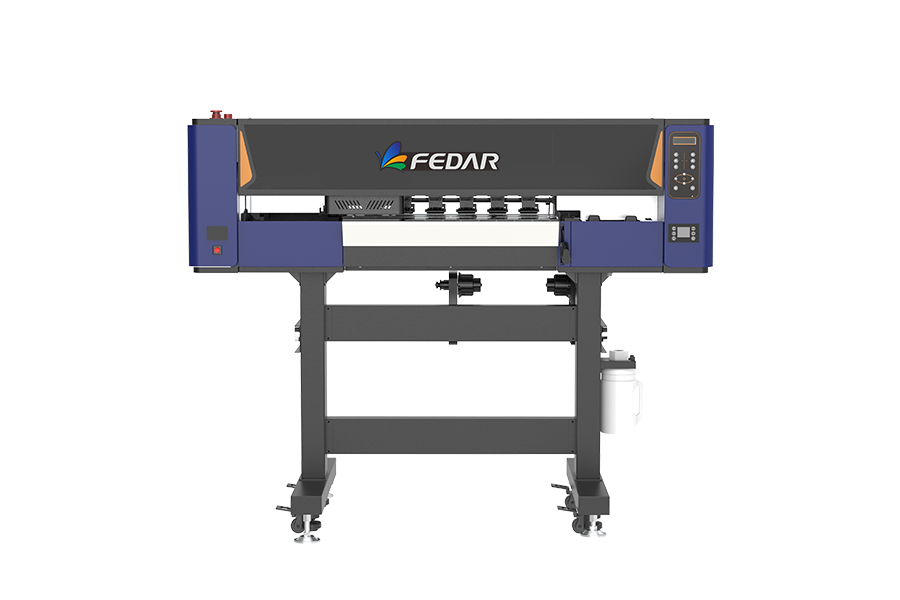

FD60 DTF Printer
Mode:
Printheads EPSON I3200-A1
Print Width 600mm
Resolution 3200
Printheads Quantity 2
Speed 6PASS 8 ㎡/h
We're here to help:Easy ways to get the answers you need.
Variable Ink Drop Technology:
Epson I3200 printheads with 3200nozzles. Variable ink drop printingimproves printing accuracy.
LeadShine Brushless Integrated Motor:
Feeding media is more accurate,and graphic output is more stable.

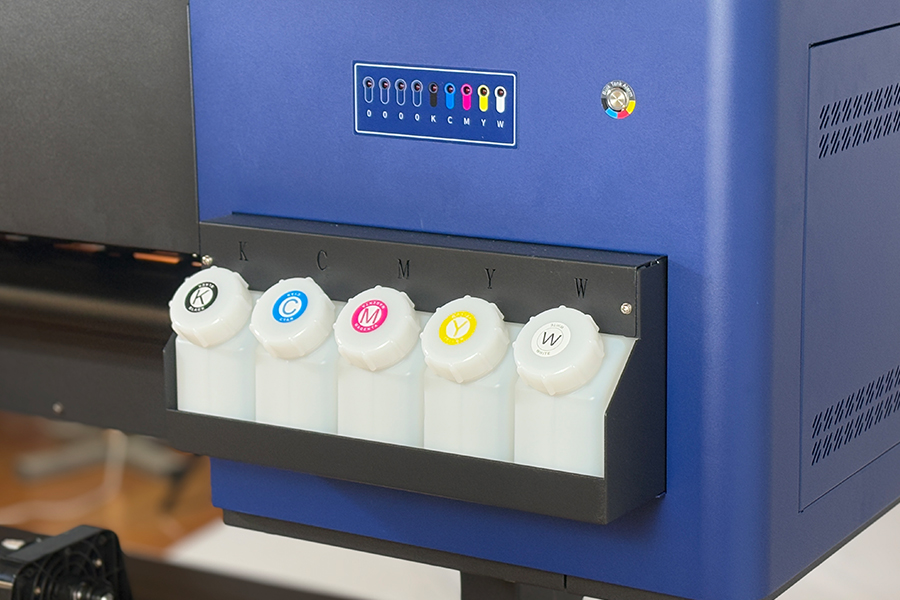

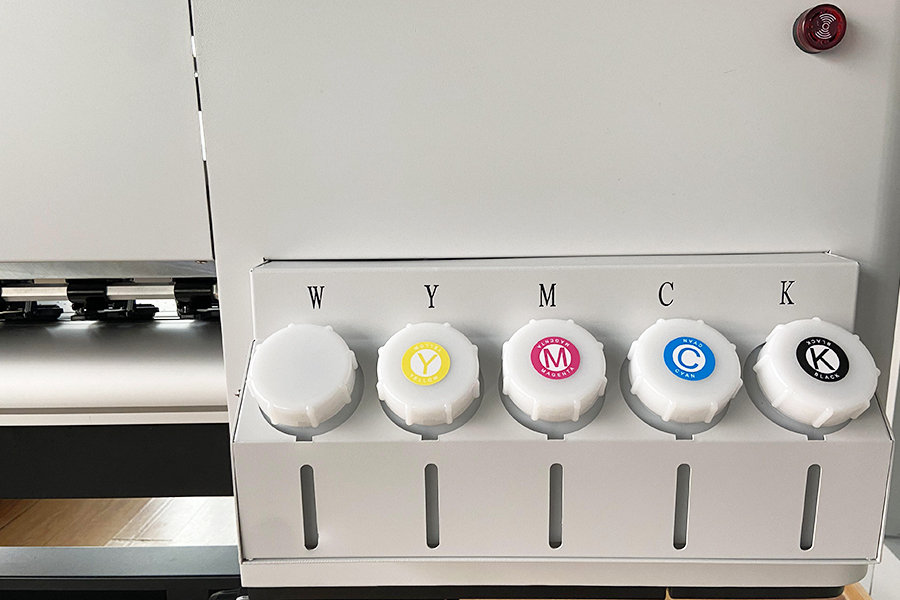

CMYK +W Ink Printing:
Original ink, printing bright,high degree of color reduction.
lmported Silent Linear Guide Rail:
Smoother operation and longer life.
lntelligent Feather Printing:
The original two-dimensional intelligentfeathering function and wave featheringfunction can eliminate BANDING inprinting and improve the excellent qualityperfectly.
| FD60 Digital Printing Plotter With Shake Powder | ||||
| Printhead | EPS I3200-A1 | Nozzle Quantity | 3200 | |
| Printhead Quantity | 2 | Print Width | 600mm | |
| Ink Color | CMYK+W Pigment Ink | Print Height | 2-5mm | |
| Resolution | 360*1200/360*1800/ | Media | Pyrograph Film | |
| 720*1200/720*1800(DPI) | ||||
| Speed | 6pass | 8㎡/h | Drying Method | Extra Dryer Device |
| *Tested on linear printing without feather function | Ink Supply Method | Siphon Positive Pressure Ink Supply | ||
| 8pass | 6㎡/h | Head Moisture | Auto Head Cleaning and Moisturize | |
| Method | ||||
| Ink Cycle | Auto White ink cycle | |||
| Ink Type | Pigment Ink | Transmission | Gigabit LAN | |
| Interface | ||||
| Computer System | Win7, Win10(Professional) | File Forms | TIFF, JPG, EPS, PDF, etc. | |
| Operate Environment | Temp.:18℃-30℃, Humidity: 35℃-65℃ | RIP Software | Photoprint | |
| Maintop | ||||
| Package Size | 1760*1000*750mm | Power Supply | 210V, 50/60HZ, 10A | |
| Print Power: 1000W | ||||
| Dryer Power: Max.3500W | ||||
| Computer Configuration | Hard Disk: HARD DISK: 500G or more，GPU: ATI Discrete GPU | |||
| Memory: 8G or more, CPU: Intel i5 Processor | ||||
