LQ 1512 Stop Production

Mode:

Printhead Technology EPSON DX5/DX7

Ink Type UV ink

Colors Double Four Color

Number of Nozzles (180 Nozzles×8 Lines) 1/2 Head as optional

Printing Materials Flex Banner,Vinyl,PVC,Backlit,Canvas,Flag

RIP software Maintop5.3/Photoprint10.5/Onyx

Operating system WindowXP,Win7/8

We're here to help:Easy ways to get the answers you need.

  • Describe
  • Application
  • Parameter
  • Inquiry

1. automatic ink –supply system
User-friendly automatic ink-supply system, ink shortage of the secondary ink tank could be detected automatically, ink will be supplied immediately from main tank. When main tank asks for ink refill , Ink alarm system of the main tank will go off automatically , lights up the indicator lamp at the same time .
2. Imported mute towline
The towline is quite wearable ,stretchable and fireproof . works well under very high tension . No problem after as many as 80 million times of high-speed back and forth movements. It could protect and tow all the cables and water pipelines inside effectively .
3. High precision pure aluminum suction platform
The Pure aluminum platform is high precision and anti-inflation .After the Anode and cathode oxidation surface treatment, it gets the property of scratch –resistant and anti-statics. Suction platform could suck air through different ways, make sure the suction force is strong and even.
4. Imported environment -friendly ink
Imported UV ink is quite environment friendly and bright colorful .soft ink for soft media is especially stretchable, no cracks when stretched into even 120% larger. The ink possesses very good fluency .clogging free, high temperature resistant , and also could stick to the media surface firmly .
5. Imported PLC system
Imported PLC system and ink circulation system help to protect the printhead and mainboard , keep the stable and smooth supply of ink .

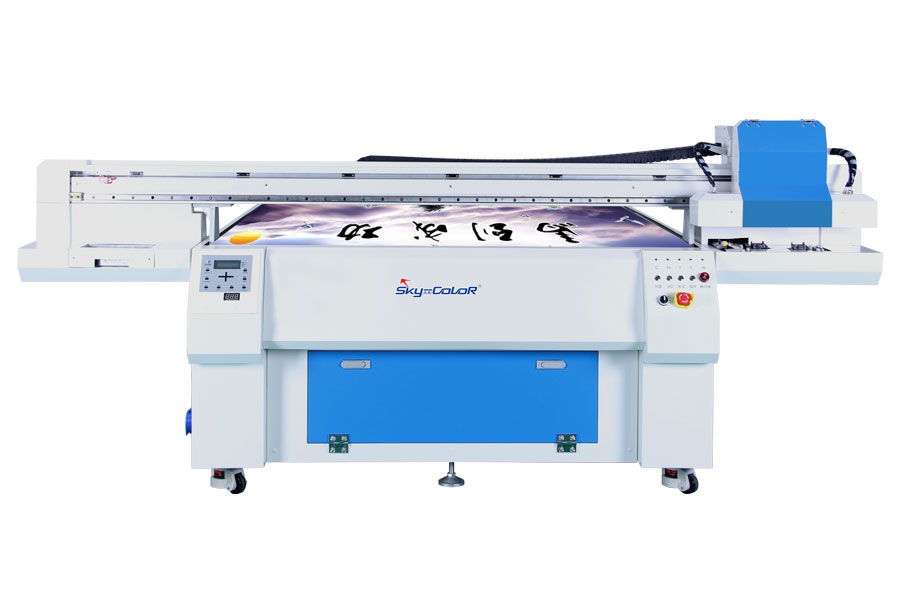

Print Model LQ-1512 Rip software Support ultra print and maintop printing software
Printhead Epson Dx5*2 Printing media acrylic,Aluminums board ,
ceramic tiles, glass,
wooden board, PC TPU, leather, etc.
Resolution 1440dpi*720dpi*360dpi File formats TIFF,BMP,PDF,EPS,JPEG etc.
Max avaiable Width and Length of media 1500mm*1200mm Printing speed 4pass 26.5㎡/h 6pass 19.3㎡/h
Ink system solvent ink: CMYK
support secondary ink tank supply
8pass 14㎡/h 12pass 8.7㎡/h
Printing interface USB2.0 Measurements 2977*2200*1300mm
Workable system Microsoft win98/Me/2000/XP/Win7 Packing size
and weight
3100*2460*1380mm 450kg
Working environment temperature 20℃---30℃
humidity:15%---40%
Voltage power AC220V 50HZ 2.5KW
Lifting function intelligent ink cartridge lifting, electron automatic/manual operation intelligent induction to inspect and adjust height Printing height 100mm(height is customizable)
