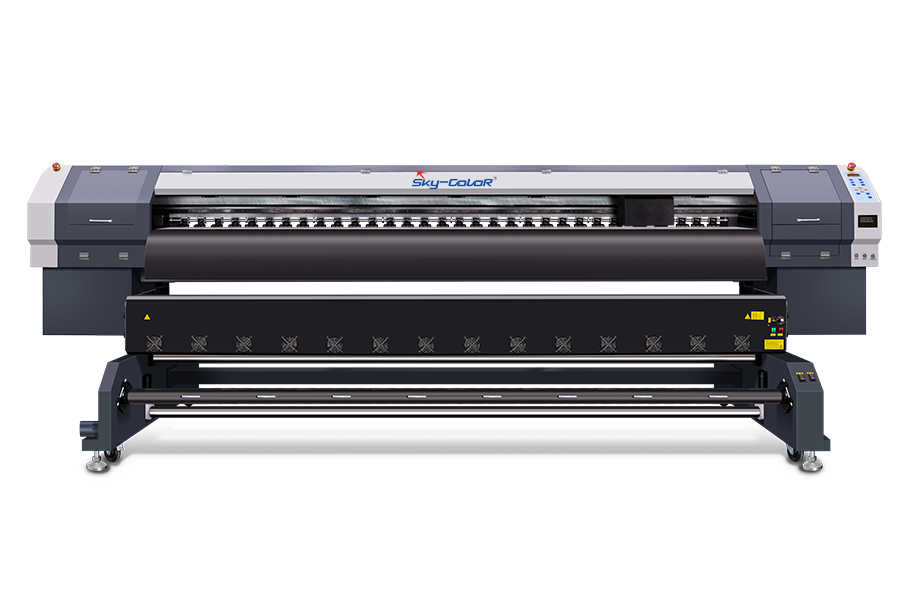

SC-320TS

Mode:

Printhead Technology EPSON DX5/Epson 5113/Epson 4720

Ink Type Water-Based; Eco-Solvent-Based

Colors Double Four Color

Number of Nozzles (180 Nozzles×8 Lines) 1/2/3 Head as optional

Printing Materials Flex Banner,Vinyl,PVC,Backlit,Canvas,Flag

RIP software Maintop5.3/Photoprint10.5/Onyx

Operating system WindowXP,Win7/8

We're here to help:Easy ways to get the answers you need.

  • Describe
  • Application
  • Parameter
  • Inquiry

 Feature
1.Double four-color printing,1.6m and 1.80m wide format output
2.Indoor and outdoor ink are both available, meeting different printing needs.
3.Multi-row pinch rollers ensure the machine can print with an accurate size of feeding media.
4.Printing resolution can reach to 1440dpi,even the word is small as 0.5mm.
5.Three different sizes of dots,achieving the complement of images,even under high speed or low resolution

Optional Items

1,Hiwin guide rail,more stable,longer working life,lower noise.
2,Imported dual direction motor,high-resolution driver linear encoder,higher resolution,fewer errors in length,more stable running.
3,Hi USB interface,transmission speed can reach to 480M/S,plug and play conveniently.
4,Adopt EPSON DX5 printhead,variable dots technology,1440DPI high resolution output.
5,VSDT variable droplet techonology,the smallest droplet is 3.5PL,largest droplet is 27PL,achieve the prefect printing quality.
6,Unique two-dimension intelligent eclosion and wave-eclosion function,elimination banding effectively in printing,improveing printing quality obviously.
7,Different kinds of printing mode,reach to 28m per hour in production mode.
8,High quality,clean,pump and moisturize automatically,which can also pump ink well and keep the ink flow fluently.
9,Four large ink reservoirs provide ink durably,keeping wide format high-speed printing wonderfully.
10,Adopt the most recommended ink in advertising industry,achieving fast drying,moisture-proofing and sticky-proofing.


Specification 3.2m eco-solvent ultra-wide format printer
Printhead Double DX5 / Eps 3200 Micro piezo printhead *2
Interface USB 2.0 USB 3.0
Maximum printing width 3200 mm(126")
Computer System Win XP, Win7 32/64bit Win8
RIP software PHOTOPRINT 11, MAINTOP 5.3, ONLY 11
Language English, Chinese
Authentication UL, FCC, CSA, CE, Mark, ISO 9001:2008
Dimension(L*W*H) 4400*920*1410mm
Resolution 720*360 dpi 720*720 dpi 720*1080 dpi 720*1440 dpi
2 Pass 4 Pass 6 Pass 6 Pass
Print speed 50 m2/h 30 m2/h 25 m2/h 15 m2/h
